ISO-DRAIN® 10 GEO PLUS

Elastic waterproofing sheet for drainage and protection

geoplus_11

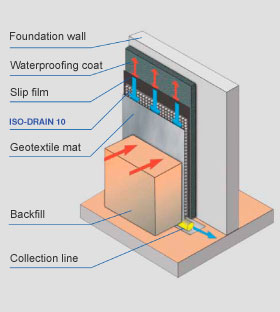

  1. Elastic waterproofing sheet for foundation wall, necessary to be protected against stones, sharp-edged debris, etc.
  2. Slip film allows dimple sheet to move in response to backfilling settlement, eliminating damage to waterproofing
  3. ISO-DRAIN 10 sheet with 10 mm high dimple texturing is specially designed to ensure high hydrostatic strength and excellent drainage
  4. Geotextile filters out soil particles to prevent obstruction of air gap between dimples, ensuring controlled drainage performance



INTERPLAST ISO-DRAIN 10 GEO PLUS is a protection and drainage sheet.

Benefits:geoplus_22en

  • allows movement of dimpled sheet to accommodate setllement
  • protects the waterproof ahainst physical damage
  • rapid installation of all three layers in one operation
  • durable
  • ensures controlled drainage
  • close dimple spacing (u 3360 per m²)
  • provides excellent compressive strength (400 kN/m²)
  • 10 mm high dimples provide ample drainage capacity

Find more about product on the Estonian data sheet ISO_DRAIN10_GEO_PLUS.pdf and from our sales representatives.
